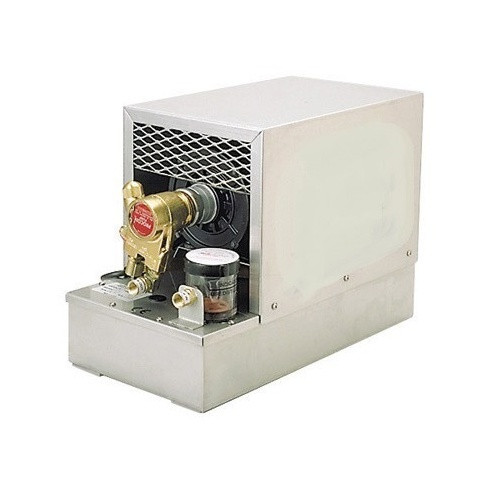

Quiet Running Vane Pump 2 Gal. Capacity - 12,000 BTU 115/230vac. 50/60 HZ

Quiet Vane Pump
Flow/Fill Sight Glass
5/8-18LH Fittings

AE 2500SS Water Cooler 2 Gallon 10,000 BTU 115 / 220v Dynaflux

Dynaflux USA

MSRP: $1,290.95

$989.59

(You save $301.36 )

(No reviews yet) Write a Review

SKU:: AE 2500SS / 680-25-102
Width:: 11.00 (in)
Height:: 18.00 (in)
Depth:: 26.00 (in)
Minimum Purchase:: 1 unit
Shipping:: Calculated at Checkout

Current Stock:

Quantity:

Adding to cart… category.add_cart_announcement

Overview
Reviews

Product Description

AE 2500SS 2 Gallon Stainless Steel Water Cooler

Vane Pump - 115v / 230v - 50/60 hz. 1ph.

Replaces - Bernard 2500ss, CM Ind. WC2500 680-25-102

Weldcraft, Weld Tec, ITW, Best Welds, Anchor & Others

Another Great Product - "Made in the USA"

High-Capacity Coolant circulator for use
with Liquid Cooled Mig, Tig or Plasma

Mig torches to 500 amps
Tig torches to 500 amps
Plasma welders/cutters to 150 amps
Resistance welders to 60 KVA
Quite running Vane Pump
100 psi max. 1.5 gpm (5.68 ipm) @ 50 psi.
Replaceable Pump Filter
10,000 BTU/Hour (2,519 W/hr.)
2 Gallon (7.6L) tank capacity
7.6 qt./min (7.2 L/min) flow
Copper Heat Exchanger - Rustproof
Visible flow sight glass
Changeable input voltage
(115-120v. / 208-230v. 50/60 Hz. 1 Ph)
Dimensions: 18.0" L x 9.25" W x 12.5"
Dry weight 41.0 lbs. (18.2kg.)

Need a Connection Kit?

GOTO: HK-1 Hook Up Kit Welding Water Cooler 12.5'
