Product Description

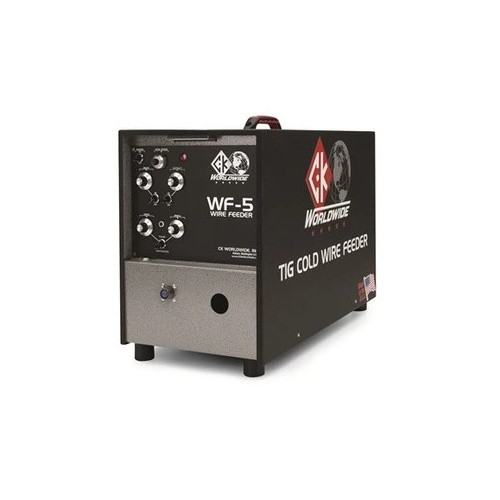

CK Cold Wire Feeder WF-5 115 / 230Full Featured Tig Cold Wire Feeder for Handheld & Automated Tig welding*Free Shipping to 48 States*Another Great Product "Made in the USA"CK Worldwide's revolutionary WF5 cold wire TIG system works independently of a standard TIG power supply using normal TIG welding parameters. For complete installation of this system, you need both the cold wire feeder and a TIG torch (handheld or machine mounted). The CK WF5 has an on-off switch, pilot light, pulse/continuous feed switch, pulse wire on-off timers, remote switch receptacle, delay wire start, and wire retract. This model comes with drive rolls for .023 - .035 wire.Benefits• Automates adding filler metal in TIG welding
• All weld parameters can be duplicated
• Dual groove drive roll system accepts multiple wire sizes
• Eliminates TIG rod stub loss
• Cabinet keeps filler wire clean
• Makes fully automatic TIG welding possible
• Results are consistent and high quality
Quick Specs
• Voltage - 115V
• Single phase
• Frequency - 50/60 Hz
• Dims - 15in H x 10in W x 21in L
• Weight - 54lbs
• Motor type - DC permanent magnet
• Motor rating - 1/3 HP at 4,000 rpm
• Filler wire spool size - 12 in
• Filler wire size - .023 - 1/16
• Wire feed speed range - 0-500 ipm

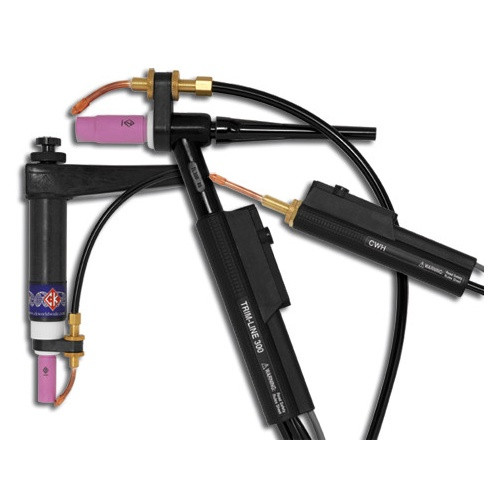

CK Cold Wire Feed TIG Torch Sold Separately.Select 115V or 230 AC, version Single phase, 50/60 Hz. Watch the CK Worldwide Video at: https://www.youtube.com/watch?v=eICgOrvyhDQ CK Worldwide Tig Cold Wire Feeder WF5 is Made in America.

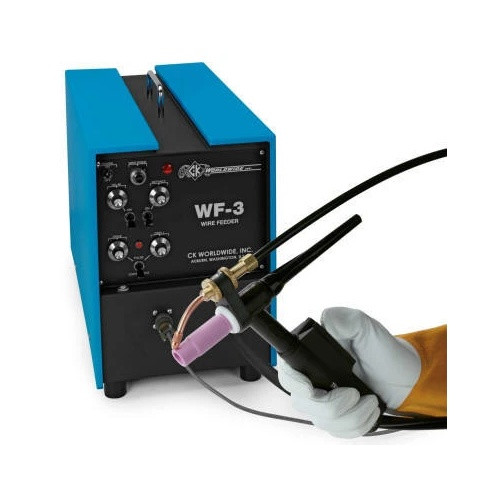

NOTE: WF5 Supersedes the WF1 and WF3 Cold Wire Feeders
