Product Description

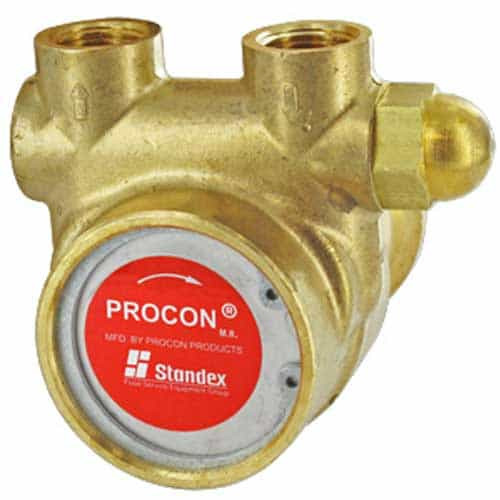

Procon 102E060F11AB Series 1 Brass
Bolt-On Rotary Vane Pump - 60 GPH, 130 PSI, 1725 RPM
Technical Specifications
Max GPM: 1 - Max PSI: 130 - RPM: 1725 - Inlet Port: 3/8 inch - Outlet Port: 3/8 inch
Procon 102E060F11AB is a Series 1 positive displacement rotary vane pump features a bolt on design with single flat drive. Self-primes in water with a 6 ft. maximum lift. This pump features port sizes with 3/8 NPT inlet and outlet ports.
Typically used in carbonation, espresso/coffee, welding, cold carb circulation, reverse osmosis, beer chillers, pesticide systems, and solar applications.
Specifications:
- Product Classification: Rotary Vane Pump
- Agency Approvals: Non-Food Grade (1.5% Max. Lead) No Agency Approval
- Series: Series 1 Brass - Integral Strainer
- Mounting and Drive Configuration: Bolt-On With Single Flat Drive
- Flowrate: 60 GPH
- Elastomer: FDA Grade Nitrile - Type 21 or Type 2106 Used Interchangeably
- Rotation / Slinger / Passivation / Strainer: Clockwise
- Clearances: Standard Clearance
- Valve Type and Configuration: Plastic, Hi Temp Bypass
- Pressure Range: 100 to 150 PSI - Default Setting 130 PSI
- Body Material Type: Brass
- Nominal Speed: 1725 RPM
- Typical Horsepower Required: .25 To .50 HP
- Maximum Discharge Pressure: 250 PSI
- Rotation (Viewed from Nameplate End): Clockwise
- Dry Weight: Approximately 2.5 Lbs.
- Dimensions: 3.56" X 3.49" X 3.86"
- Self-Priming (Water): 6 Ft. Maximum Lift
- Port Size: 3/8 NPT Inlet and Outlet
Applications:
- Carbonation
- Espresso/Coffee
- Welding
- Cold Carb Circulation
- Reverse Osmosis
- Beer Chillers
- Pesticide Systems
- Solar Applications
WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm (For more information go to www.p65warnings.ca.gov). Note Usually ships within 7-10 days ARO
